Most homes use doors that measure 72 inches wide by 80 inches tall. This standard sliding glass door size fits perfectly in typical wall openings and costs less than custom options. Whether you’re replacing an old door or installing a new one, knowing these measurements helps you plan better and avoid expensive mistakes.
Sliding door measurements range from 60 inches to 192 inches in width and have height options between 80 inches and 96 inches, so your decision depends on factors like wall space, budget and desired natural light levels. Let’s examine all size options so you can find one best suited to your home environment.
Table of Contents

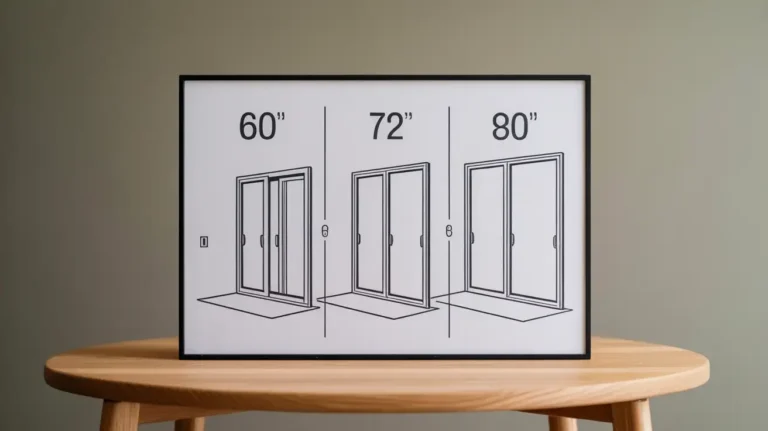

What Are Common Sliding Glass Door Sizes?
Standard doors come in set dimensions that match most home designs. Manufacturers build these sizes because they fit typical wall frames. This makes installation easier and keeps costs down.
The most popular standard size is 6 feet wide and 6 feet 8 inches tall. That’s 72 inches by 80 inches in exact measurements. You’ll find this size in about 60% of homes across the country.
Why Standard Sizes Matter
Building your door to standard dimensions saves you money in three ways. First, the door costs less because companies make them in bulk. Second, installation takes less time since contractors work with these sizes daily. Third, you can find replacement parts easily if something breaks years later.
Custom sizes cost 40% to 80% more than standard options. They also take 6 to 12 weeks to arrive instead of 2 to 4 weeks. Unless your wall opening is unusual, stick with standard measurements.
Understanding Door Configurations
Sliding patio doors use letter codes to show which panels move. An “X” means the panel stays fixed in place. An “O” means it slides open.
Here’s what each code means:
- XO: Left panel fixed, right panel slides
- OX: Left panel slides, right panel fixed
- OXO: Both outer panels slide toward the center
- XOOX: Center panels slide toward the outer fixed panels
Pick the configuration based on your furniture layout. If your couch sits on the left side, choose an XO door that slides right.
Two-Panel Sliding Glass Door Sizes
Two-panel doors are the most common type. They have one fixed panel and one that slides. This design works great for smaller spaces and costs less than multi-panel options.
Standard Two-Panel Dimensions
Width | Height | Best For |
60 inches (5 feet) | 80″, 96″ | Small patios, condos, apartments |
72 inches (6 feet) | 80″, 96″ | Standard homes, most common size |
96 inches (8 feet) | 80″, 96″ | Master bedrooms, larger patios |
The 72-inch width dominates residential installations. It provides enough space for furniture moving and daily traffic. The standard height of 80 inches matches typical door frames in most buildings.
Opening Width Reality
Remember that only one panel opens. Your actual walking space is about 36 inches on a 6-foot door. The fixed panel takes up the other half. Plan furniture placement knowing this limitation.
Cost Range for Two-Panel Doors
Budget options start at $300 for basic vinyl frames with clear glass. Mid-range doors with better insulation run $800 to $1,200. Premium models with Low-E glass and fiberglass frames cost $1,500 to $2,500.
Installation adds $500 to $1,500 depending on your location and any needed wall modifications.
Three-Panel Sliding Glass Door Sizes
Three-panel doors create wider openings and bring in more light. They work well for connecting kitchens or living rooms to outdoor spaces.
Standard Three-Panel Dimensions
Width | Height | Configuration Options |
108 inches (9 feet) | 80″, 96″ | OXO (both ends slide) |
144 inches (12 feet) | 80″, 96″ | OXO or OOX (flexible) |
The 144-inch width is extremely popular for great rooms. It provides a dramatic view and makes indoor-outdoor entertaining easy.
Panel Operation Styles
Most three-panel systems use the OXO setup. The center panel stays fixed while both outer panels slide inward. This creates two separate openings, which helps with traffic flow during parties.
Some designs let panels slide in one direction only. These cost less but limit how you can open the door.
Installation Complexity
Doors wider than 10 feet need careful structural checks. The header beam above must support more weight. Some older homes need reinforcement before installation. Budget $800 to $2,500 for this work if required.
Four-Panel Sliding Glass Door Sizes
Four-panel doors make a bold statement. They’re perfect for homes with large patios or pool areas where you want maximum openness.
Standard Four-Panel Dimensions
Width | Height | Typical Setup |
144 inches (12 feet) | 80″, 96″ | XOOX (center panels slide) |
192 inches (16 feet) | 80″, 96″ | XOOX or OOXX (custom) |
The 192-inch option spans an entire wall in many rooms. It creates a seamless connection between inside and outside living areas.
Structural Requirements
Large sliding glass doors need proper engineering. Wall studs must sit 16 inches apart, not 24 inches. The header beam requires calculation based on the span and weight above it.
For 16-foot openings, expect to hire a structural engineer. This costs $500 to $1,000 but prevents serious problems. Some installations need steel beams instead of wood, adding $2,000 to $4,000 to costs.
When Four Panels Make Sense
Choose four-panel doors if:
- Your room is at least 20 feet wide
- You entertain outdoors frequently
- You want a luxury, high-end look
- Budget allows for the premium price
These systems start at $3,000 for materials alone. Professional installation runs $2,000 to $4,000 more.
Sliding Glass Door Heights
Standard height is 80 inches (6 feet 8 inches). This matches building codes and typical door frames across America. Most manufacturers make this height for all their standard doors.
Other Common Heights
- 82 inches (6 feet 10 inches): Used in homes with 9-foot ceilings. The extra 2 inches improve proportions in taller rooms. Available in most panel configurations but costs slightly more.
- 96 inches (8 feet): Found in great rooms and luxury homes. This height requires higher ceilings and larger wall openings. Custom framing usually costs $1,500 to $3,000 extra.
Why 80 Inches Became Standard
This dimension comes from the International Residential Code (IRC R311.3). Doors must be at least 78 inches tall, and 80 inches became the industry standard with room for adjustment during installation.
The rough opening for an 80-inch door measures 82 inches. This leaves space for the header, sill, and small adjustments to make the door level.
Measuring Your Opening Height
Always measure from the subfloor, not finished flooring. Add these amounts if you already installed floors:
- Hardwood: 0.75 inches
- Tile over underlayment: 0.5 inches
- Tile over concrete: 1 inch
Measure at three spots: left side, center, and right. Use the smallest measurement. Walls rarely sit perfectly straight.
Sliding Glass Door Size vs. Cost
Price depends on five main factors: width, height, frame material, glass type, and installation complexity.
Material Cost Breakdown
- Vinyl Frames: $300 to $800 for standard sizes. Low maintenance and good insulation. Can warp on south-facing walls in hot climates. Best for most budget-conscious homeowners.
- Aluminum Frames: $400 to $1,000 for standard sizes. Sleek and modern look. Needs thermal breaks to prevent heat transfer. Works well in contemporary designs.
- Fiberglass Frames: $800 to $1,500 for standard sizes. Extremely durable and can be painted. Resists salt air in coastal areas. Worth the investment for long-term value.
- Wood-Clad Frames: $1,500 to $3,000+ for standard sizes. Beautiful traditional look. Requires regular maintenance. Aluminum exterior protects against weather.
Glass Options and Pricing
- Single Pane Clear: Avoid this. Poor insulation and not energy efficient. Only found in very old doors.
- Dual-Pane Clear: Add $100 to $200 over single pane. Minimum standard for new installations. Reduces energy costs by 40% compared to single pane.
- Low-E Dual-Pane: Add $200 to $400 over clear dual-pane. Blocks UV rays and reduces heat gain. Pays for itself in 3 to 5 years through lower AC costs.
- Triple-Pane: Add $400 to $600 over dual-pane. Overkill in mild climates. Better for extreme cold regions.
Size Impact on Price
Larger doors cost more per square foot. Here’s why:
- Heavier glass needs stronger frames
- Bigger panels need better roller systems
- Installation requires more workers
- Structural modifications increase with width
A 6-foot door might cost $1,200. A 12-foot door doesn’t cost $2,400. It runs closer to $3,500 because of these factors.
Installation Costs
- Basic Replacement (like-for-like size): $500 to $1,000. It takes 6 to 8 hours. No structural changes needed.
- Widening Opening: $2,000 to $4,000. Requires new header beam, wall framing changes, and finish work.
- New Installation (cutting wall): $3,000 to $6,000. Includes framing, structural work, permits, and inspections.
Energy Efficiency and Long-Term Savings
Energy efficient doors save money every year. A south-facing 6-foot door in a warm climate loses about $320 annually through poor insulation.
Upgrade to Low-E dual-pane glass and save $200 to $280 per year. The upgrade costs about $300 more upfront. Payback happens in 18 months, then you save for the next 20+ years.
Look for these ratings on the NFRC label:
- U-Factor: Should be 0.30 or lower (measures insulation)
- SHGC: Should be 0.25 or lower in hot climates (blocks heat)
Custom Sizes and Premium Features
Custom dimensions add 40% to 80% to the base price. A standard 72-inch door at $1,200 becomes $1,700 to $2,200 as a custom order.
Premium features that increase costs:
- Internal blinds: Add $300 to $600
- Decorative glass patterns: Add $200 to $500
- Smart locks and sensors: Add $150 to $400
- Impact-resistant glass: Add $500 to $1,200
Budget Planning Guide
Total Project Costs (standard 72″ x 80″ door):
- Budget Tier: $1,500 to $2,500 installed
- Mid-Range: $2,500 to $4,000 installed
- Premium: $4,000 to $6,500 installed
These numbers include the door, installation, permits, and basic trim work. Add more for structural modifications or custom sizing.
Measuring for Your New Door
Accurate measurements prevent costly mistakes. Wrong dimensions mean ordering delays, installation problems, and wasted money.
Understanding Rough Opening
The rough opening is the framed space in your wall. The door unit fits inside this opening. The door is always smaller than the rough opening by 1.5 to 2 inches. This gap allows for adjustment and insulation.
Step-by-Step Measurement Process
Measure Width:
- Measure from stud to stud (not drywall to drywall)
- Take three measurements: top, middle, bottom
- Write down all three numbers
- Use the smallest measurement
- This is your rough opening width
Measure Height:
- Measure from subfloor to bottom of header
- Take three measurements: left, center, right
- Record all three numbers
- Use the smallest measurement
- This is your rough opening height
Check for Square:
- Place a 4-foot level across the bottom
- Check both vertical sides with the level
- If you see more than ¼-inch deviation, the opening needs adjustment
- Out-of-square openings cause doors to stick and leak air
Common Measurement Mistakes
- Measuring the Old Door: Don’t do this. Measure the rough opening instead. The old door might not fit properly or might be a different brand with different sizing.
- Measuring Once: Always measure three times in three spots. Walls settle and shift over time.
- Ignoring Floor Thickness: If you measure from finished floors, add the floor thickness to get the subfloor measurement.
- Forgetting Wall Thickness: Standard door frames are 4⅝ inches or 6⅝ inches deep. Your wall must match, or you need extension jambs.
Choosing the Right Frame Material
Frame materials affect durability, maintenance, and energy efficiency. Each type has strengths and weaknesses.
Vinyl Frames
Best for most residential installations. Requires zero maintenance and provides good insulation. Available in white, tan, and bronze colors.
Watch for warping on west-facing walls in hot climates. Choose brands with heat-resistant formulations. Quality vinyl lasts 20 to 25 years.
Aluminum Frames
Creates narrow sight lines and modern aesthetics. Very strong and won’t rot or warp. Available in many powder-coat colors.
Must have thermal breaks in the frame. Without them, aluminum transfers heat and cold, raising energy bills. Good aluminum frames last 20 to 30 years.
Fiberglass Frames
Premium option worth considering for coastal homes. Resists salt air, humidity, and temperature changes. Can be painted any color you want.
Strongest frame material by weight. Never rots, rusts, or corrodes. Costs more upfront but lasts 30 to 50 years with minimal maintenance.
Wood and Clad Frames
Traditional beauty with classic appeal. Real wood interiors can be stained to match your decor. Aluminum or vinyl exterior protects against weather.
Requires regular maintenance on the interior wood. Watch for moisture problems and termites. Quality clad frames last 25 to 40 years with proper care.
Glass Technology That Matters
Glass makes up 80% of your door’s surface. The right glass type dramatically improves comfort and efficiency.
Tempered Safety Glass
Required by building codes (IRC R308.4). When broken, it shatters into small rounded pieces instead of dangerous shards. All sliding doors must use tempered glass.
Insulated Glass Units (IGU)
Two or more glass panes separated by a sealed space. The gap contains air or argon gas. This design blocks heat transfer 50% better than single pane.
Dual-pane is the minimum standard today. Triple-pane adds cost but little benefit in mild climates.
Low-E Coatings
Invisible metallic layers that reflect heat. Low-E glass blocks 95% of UV rays that fade furniture and carpets. In hot climates, it keeps your home 8 to 12 degrees cooler.
Two types exist:
- Low-E 272: Better light transmission, moderate heat control
- Low-E 366: Maximum heat blocking for south and west exposures
The upgrade costs $200 to $400 but saves $200+ annually on cooling costs.
Argon Gas Fill
Argon is denser than air and improves insulation. It’s colorless, odorless, and safe. Adds about $50 to $100 per door.
Over 10 to 15 years, the gas can slowly leak out. Quality seals minimize this problem. Still worth the small investment for better initial performance.
Choose San Diego Home Remodeling for Sliding Glass Door Solutions
Our team specializes in patio door installations throughout San Diego County. We handle everything from measurements to permits to final inspection.
Why Work With Us
We’ve installed sliding doors in homes from Oceanside to Chula Vista since 2002. Our experience includes condos, single-family homes, and luxury properties. Every installation meets California building codes and manufacturer specifications.
Our process starts with a free in-home consultation. We measure your opening, discuss your goals, and explain all options without pressure. You’ll get a detailed written quote with specific model numbers and clear pricing.
Complete Service Package
- Pre-Installation: We verify structural capacity, check wall thickness, and identify any issues before ordering. This eliminates surprise costs during installation.
- Permit Handling: We manage all permit applications with your local building department. Permits typically add $200 to $400 but protect your investment and ensure code compliance.
- Professional Installation: Our licensed team installs your door properly with attention to weatherproofing, insulation, and smooth operation. Work includes cleanup and debris removal.
- Post-Installation: We provide a one-year workmanship warranty beyond the manufacturer’s coverage. Annual maintenance services keep your door operating smoothly for decades.
Local Expertise Matters
San Diego’s coastal climate requires specific knowledge. Salt air affects frame materials differently. Sun exposure on south and west walls demands Low-E glass. We understand these factors and recommend them accordingly.
Our handyman San Diego services extend beyond doors to complete home improvements. From minor repairs to full home remodeling in San Diego CA, San Diego Home Remodeling delivers quality work you can trust.
Get Your Free Consultation
Contact us today for accurate measurements and expert advice. We’ll help you choose the right standard size or determine if custom sizing makes sense for your project. Our transparent pricing and professional service make your door installation stress-free.
Call us or schedule online to start your project. We serve all of San Diego County with the same commitment to quality and customer satisfaction.
Maintenance for Long-Term Performance
Proper care extends your door’s life and keeps it working smoothly. Follow this simple maintenance schedule.
Every Three Months
Clean the bottom track with a vacuum and damp cloth. Built-up dirt causes 90% of sliding problems. Takes five minutes and prevents expensive service calls.
Twice a Year
Lubricate locks, handles, and rollers with silicone spray. Never use oil-based products. They attract dirt and gum up the mechanisms.
Once a Year
Inspect weather stripping around the door perimeter. Replace any sections that look crushed, torn, or hard. New weather stripping costs $40 to $60 and takes 30 minutes to install.
Check the weep holes at the bottom of the frame. These tiny openings drain water. Keep them clear of debris.
Every Two to Three Years
Remove the door and inspect roller assemblies. Replace rollers if wheels show flat spots or bearings feel rough. New rollers cost $80 to $150 with installation.
Professional Service
Consider annual professional tune-ups for $150 to $200. Technicians adjust alignment, check all seals, lubricate components, and catch small problems before they become big repairs.
Frequently Asked Questions
What is the most common patio door size?
The most common size is 72 inches wide by 80 inches tall. This 6-foot by 6-foot-8-inch dimension fits standard wall openings in most homes. About 60% of residential installations use this size.
Can I install a larger door without changing my wall framing?
No. Going from a 6-foot to an 8-foot door requires removing the header and installing a longer one. This is structural work that needs proper engineering. Budget $1,500 to $3,000 for header replacement and framing modifications.
How do I know if I need a two-panel or three-panel door?
Consider your wall space and budget. Two-panel doors work for openings up to 8 feet wide. Three-panel doors fit openings from 9 to 12 feet. Larger openings bring more light but cost significantly more.
What’s the difference between rough opening and door size?
The rough opening is the framed space in your wall. It’s always 1.5 to 2 inches larger than the door unit itself. This gap allows for adjustment and insulation during installation.
Do sliding doors come in custom sizes?
Yes. Manufacturers build custom dimensions for unusual openings or special designs. Custom doors cost 40% to 80% more than standard sizes and take 6 to 12 weeks to arrive instead of 2 to 4 weeks.
How much does a standard sliding glass door cost?
A standard 6-foot by 80-inch door ranges from $300 to $2,500 depending on frame material and glass type. Installation adds $500 to $1,500. Total project costs run $1,500 to $4,000 for most homeowners.
What permits do I need for door installation?
Most jurisdictions require building permits for door replacement or installation. In San Diego County, permits cost $200 to $400. They include required inspections that verify proper installation and code compliance.
Will a new door reduce my energy bills?
Yes. Modern Low-E dual-pane doors save $200 to $280 annually compared to old single-pane doors. The upgrade pays for itself in 18 to 36 months, then saves money for 20+ years.
How long does door installation take?
A straightforward replacement of a standard size door takes 6 to 8 hours. Custom installations or projects requiring structural changes may take 2 to 3 days. Get a written timeline in your installation contract.
Should I choose vinyl or fiberglass frames?
Vinyl costs less ($300-$800) and works well for most homes. Fiberglass costs more ($800-$1,500) but lasts longer and performs better in coastal areas. Choose fiberglass within 3 miles of the ocean or for maximum durability.
